Products details:

Structural Features：

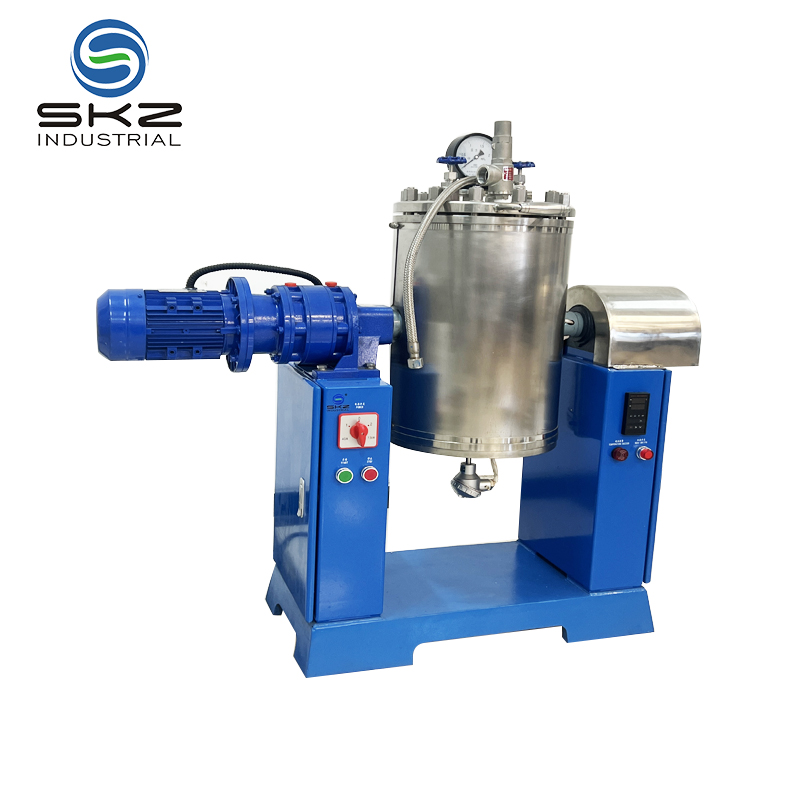

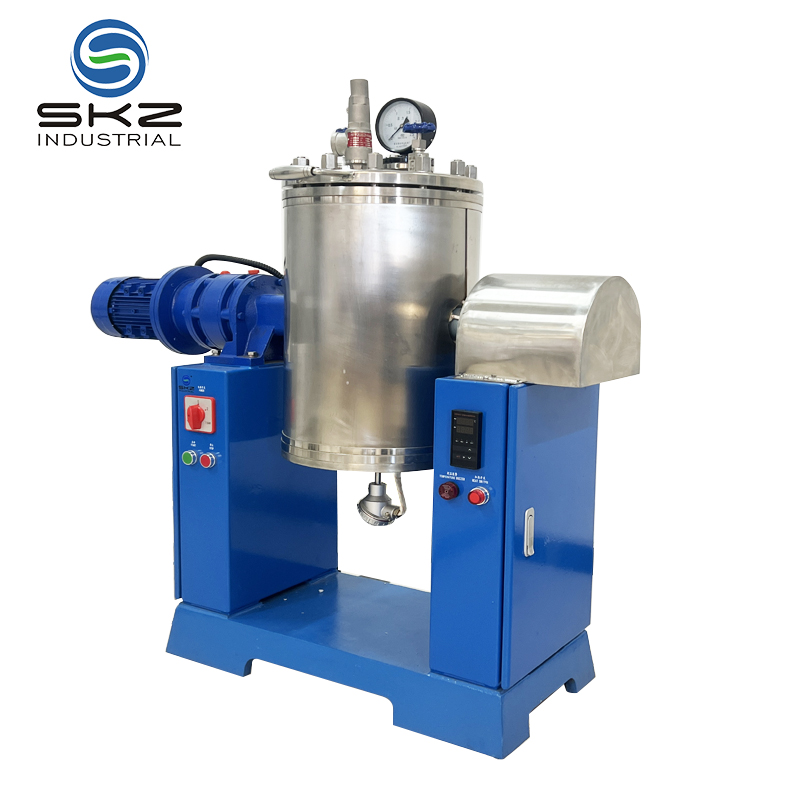

1.The device is mainly composed of a machine frame, steamer, reducer, heating laps,

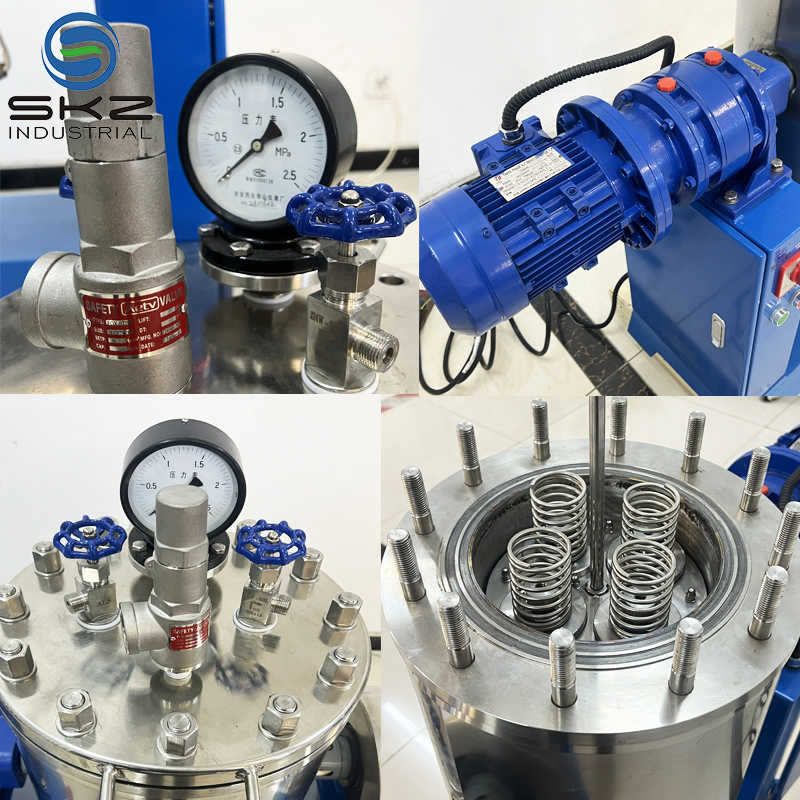

rolling bearing, no carbon brush and slip ring, and a safety valve, temperature control instrument, a pressure gauge, a needle valve.
2.This device part uses the high quality stainless steel , with high corrosion resistance.
3.The heating part of the electric heating ring is composed of six pieces, directly heating, simple structure, convenient repair and replacement
4.Temperature control adopts intelligent PID to adjust temperature and heating control, ensure the cooking quality.

Working Principle：
Digester into the raw materials, the speed reducer directly drives the steamer. Using
4.5KW electric heating ring for constant temperature control heating.

Optional accessory with extra charge

Oxygen Bleaching Digester Cells–（Oxygen digestion bombs）

1.Capacity:

 Single Capacity 1 Liters;

 Total capacity 4*1 Liters
2.Working Pressures: 8kg/cm²
3.Hydraulic Pressure:16kg/cm²
4.Gross Weights:16kg

Digester cells（digestion bombs）

1.Capacity:

 Single Capacity 1.5 Liters;

 Total capacity 4*1.5 Liters
2.Working Pressures: 8kg/cm²
3.Hydraulic Pressure:16kg/cm²
4.Gross Weights:16kg
