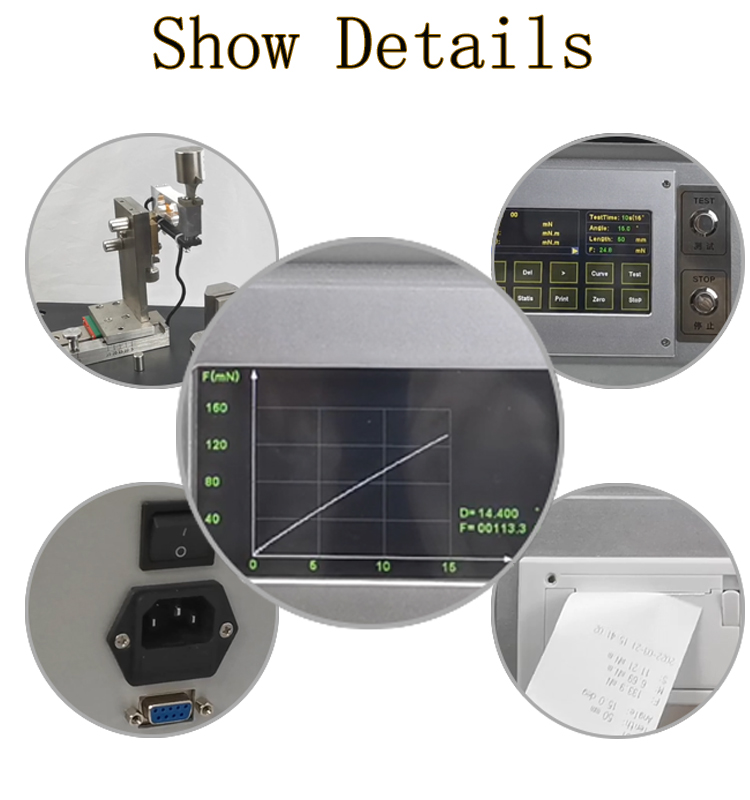

Products details:

The tester is used to evaluate the stiffness and resiliency of cardboard by international Taber method.

Feature

5.7in LCD, real-time display stiffness value and curves
Automatic zero adjustment.
Display memory, statistics and print of test results
The angle can be set between (1 ~ 90) °.
Test time is within a predetermined range (3s ~ 35s) arbitrarily set.
Measure unit can be gf.cm

Standard

GB/T 2679.3, GB/T 23144, ISO 5628, ISO 2493, ASTM D 5342

Technical parameter

Items	Specification
Measuring range	(15 ~ 10000) mN.m
Accuracy	The following 50mN ± 0.6mN, ± 1% remaining
Resolution	0.1mN
Indication variability	≤1% (measured on the stall limit of 10% to 90% range)
Bending length	(50/25/20/15/10/5) ± 0.1mm
Bending angle	(± 7.5 ° or ± 15 degree) ± 0.3 degree (1 to 90 degree)
Test speed	200 ° ± 20 ° / min
Print output	Modular integrated thermal printer
Data Display	5.7in LCD with graph display
Working conditions	Temperature 20 ~ 40 ℃, relative humidity <85%
Dimensions	340mm (length) × 330mm (width) × 340mm (H)
Weight	15kg
