Technical parameters
| Items | Specification |
| Working plate diameter | Ф115mm |
| Working plate speed of revolution | 75r/min |

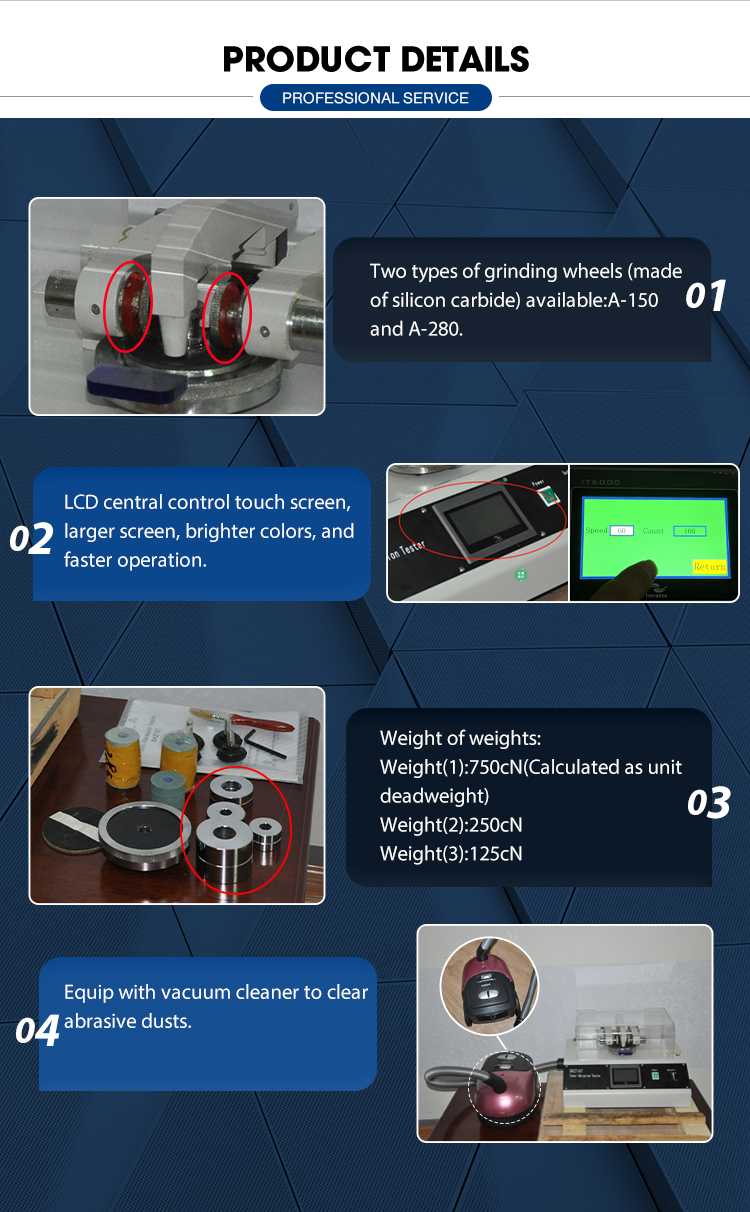

| Grinding wheel external dimension | diameter Ф50mm, thickness 12mm |
| Counting range | 0～999999 times |
| Loading pressure | Self-weight of pressing sleeve:250cN |
| weight 1: 750cN | |
| weight 2: 250cN | |
| weight 3: 125cN | |
| Power | AC220V 50Hz 60W |
| Dimension | 520×370×360mm |
| Weight | 50Kg |

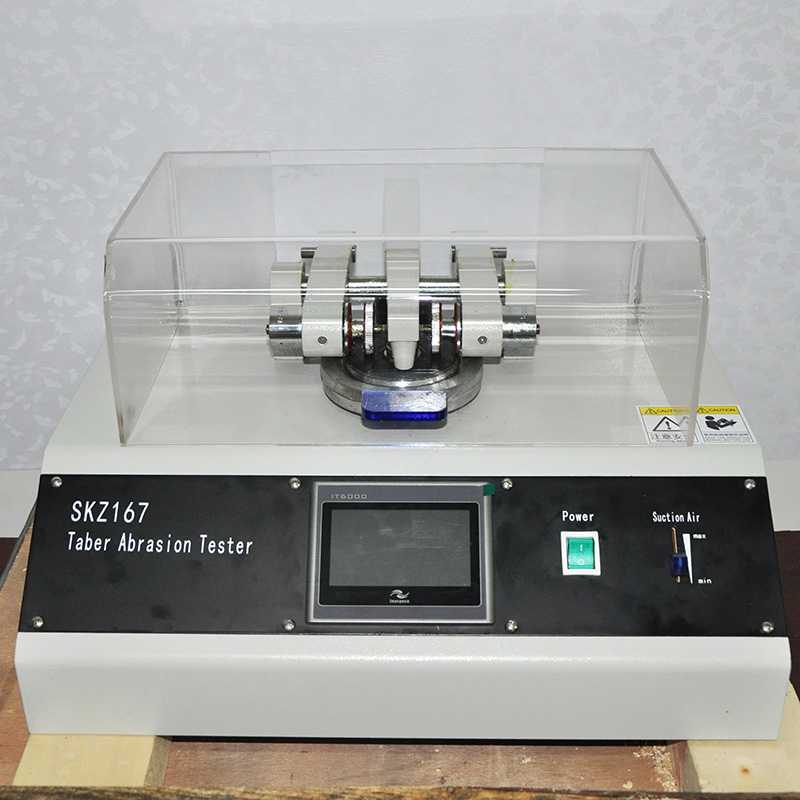

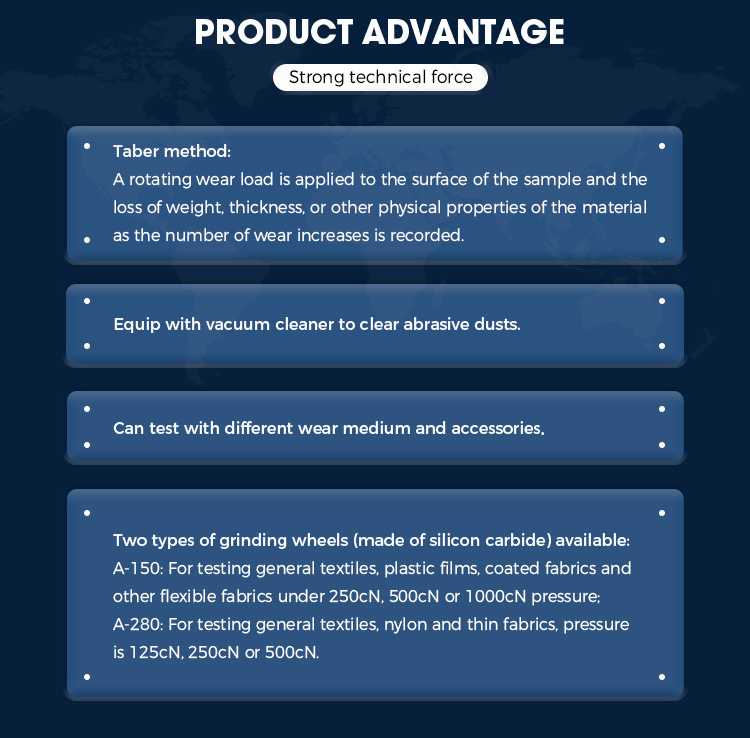

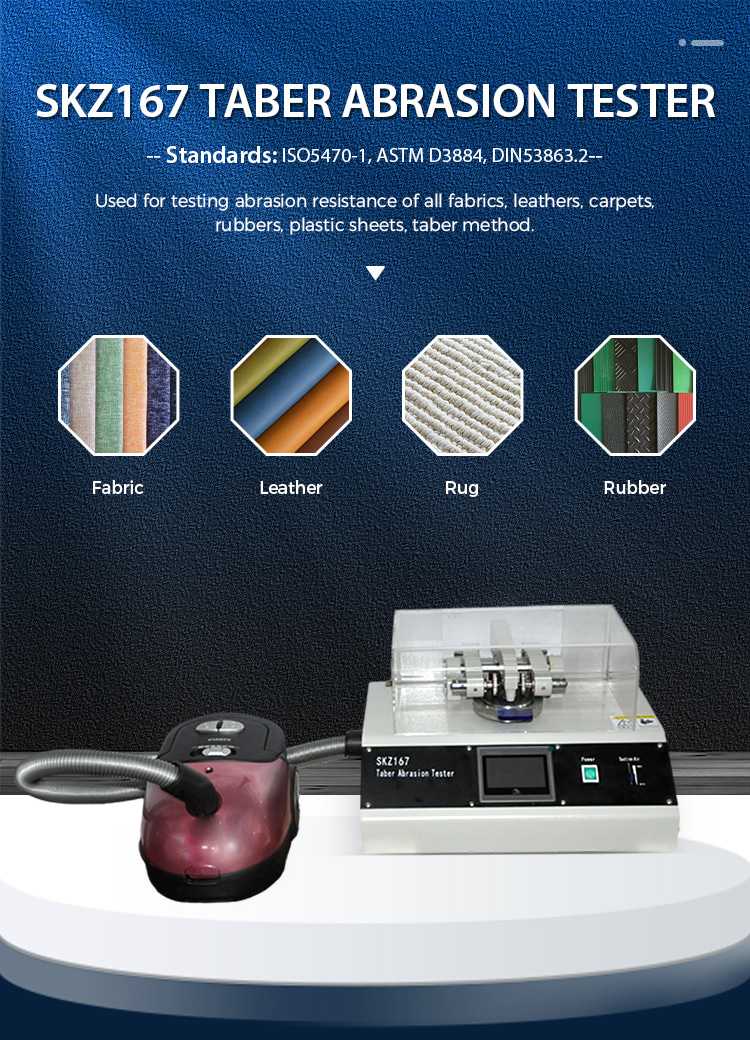

Used for testing abrasion resistance of all fabrics, leathers, carpets, rubbers, plastic sheets, taber method.
Standards
ISO5470-1, ASTM D3884, DIN53863.2
Technical parameters
| Items | Specification |
| Working plate diameter | Ф115mm |
| Working plate speed of revolution | 75r/min |
| Grinding wheel external dimension | diameter Ф50mm, thickness 12mm |
| Counting range | 0～999999 times |
| Loading pressure | Self-weight of pressing sleeve:250cN |
| weight 1: 750cN | |
| weight 2: 250cN | |
| weight 3: 125cN | |
| Power | AC220V 50Hz 60W |
| Dimension | 520×370×360mm |
| Weight | 50Kg |
